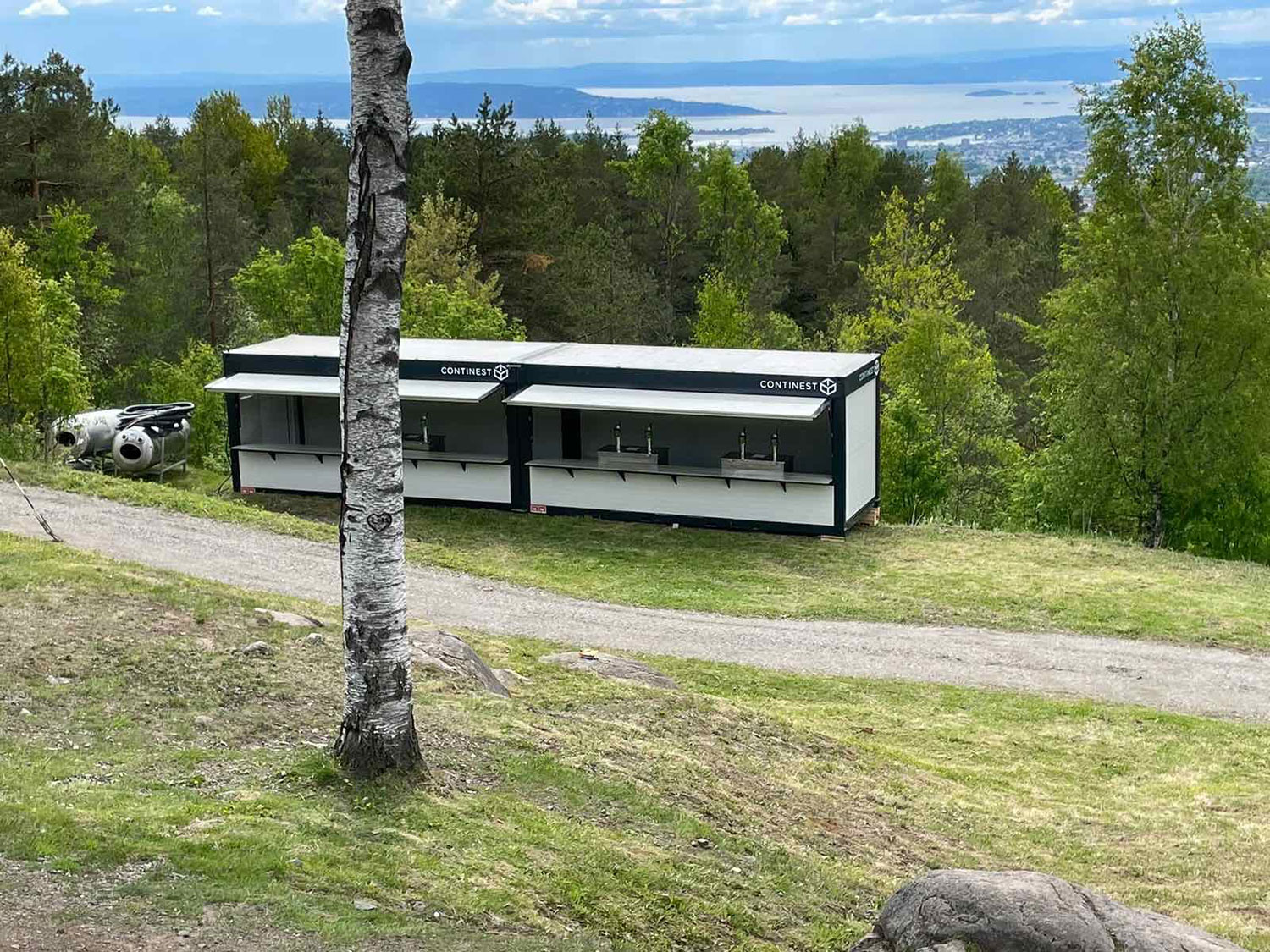

The CN Retail Unit is based on the standard CN20 container. Multiple units can be combined modularly and joined together along either the long or the short walls.
CN Retail
The next generation vending solution
CN RETAIL

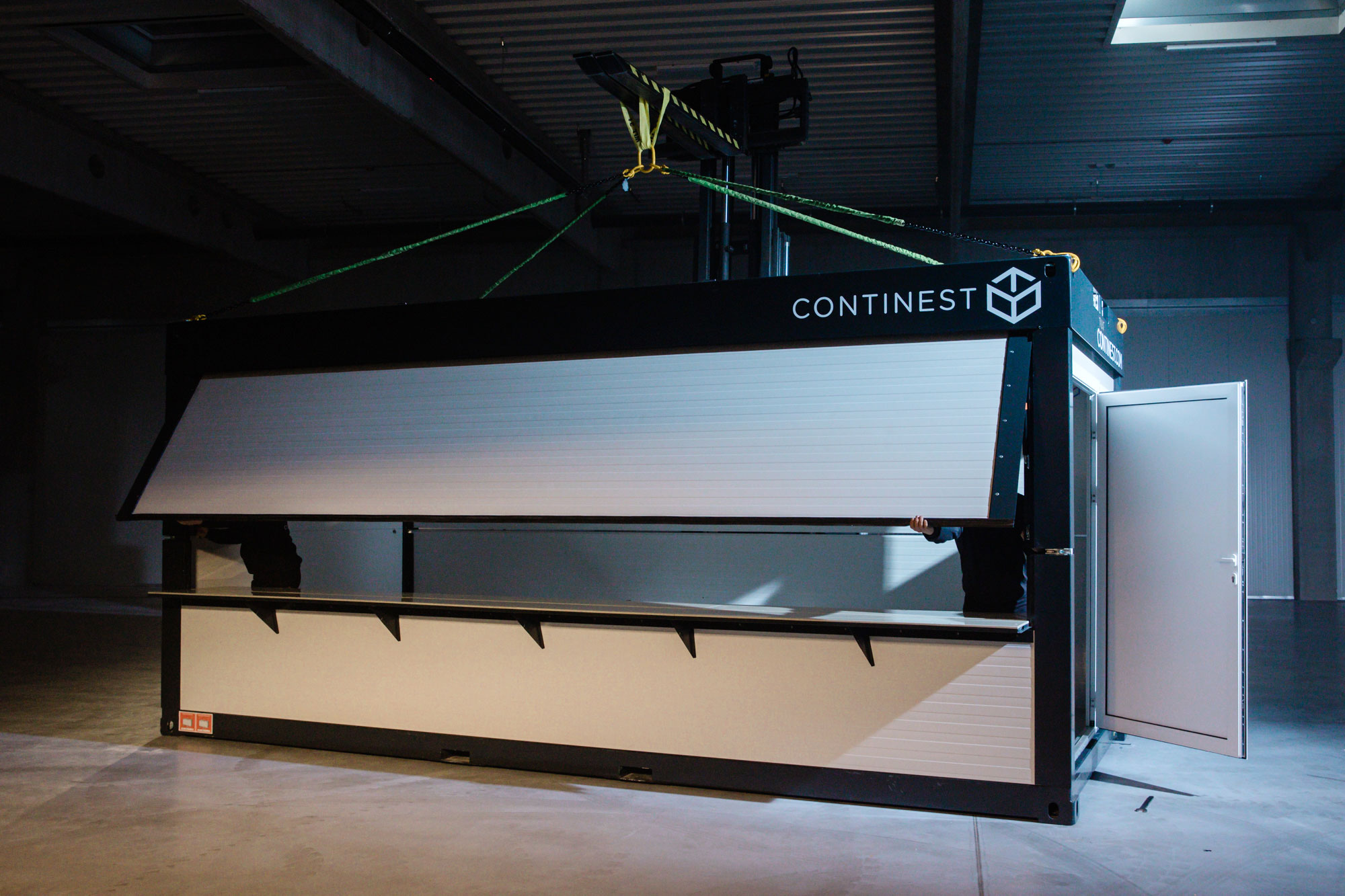

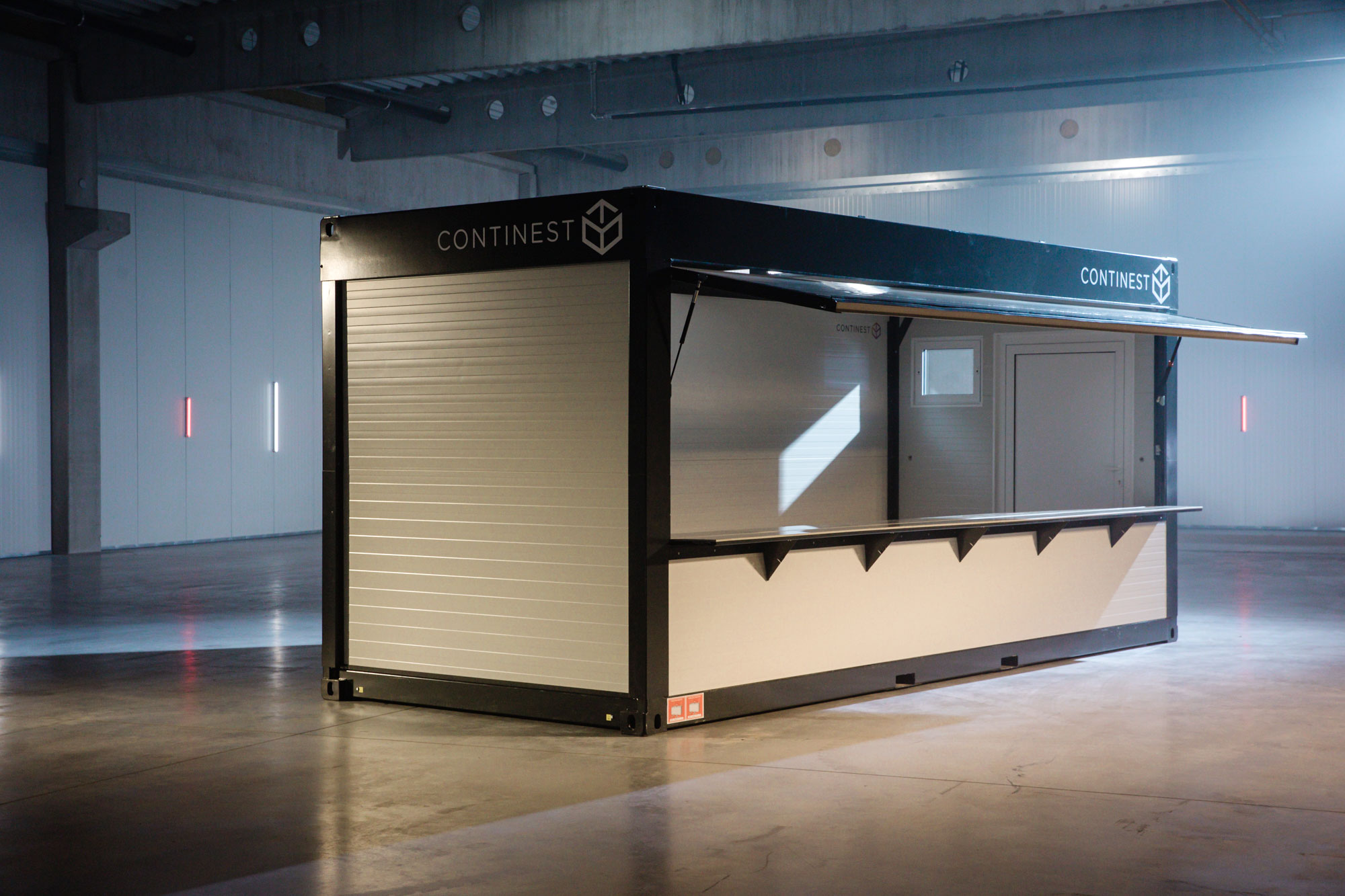

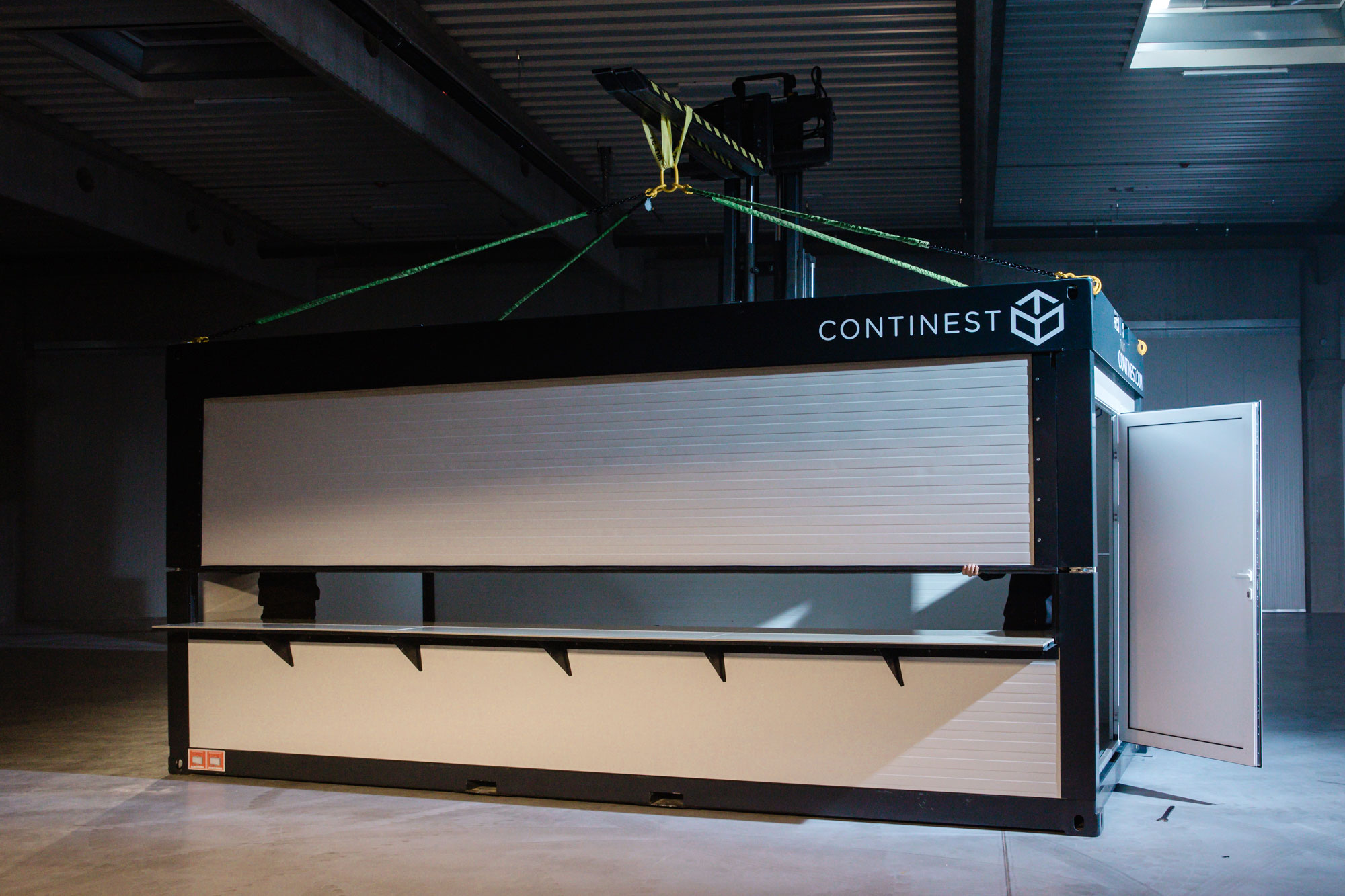

The lift-up canopy
& drop-down counter
Make it the perfect solution for any point-of-sale operation

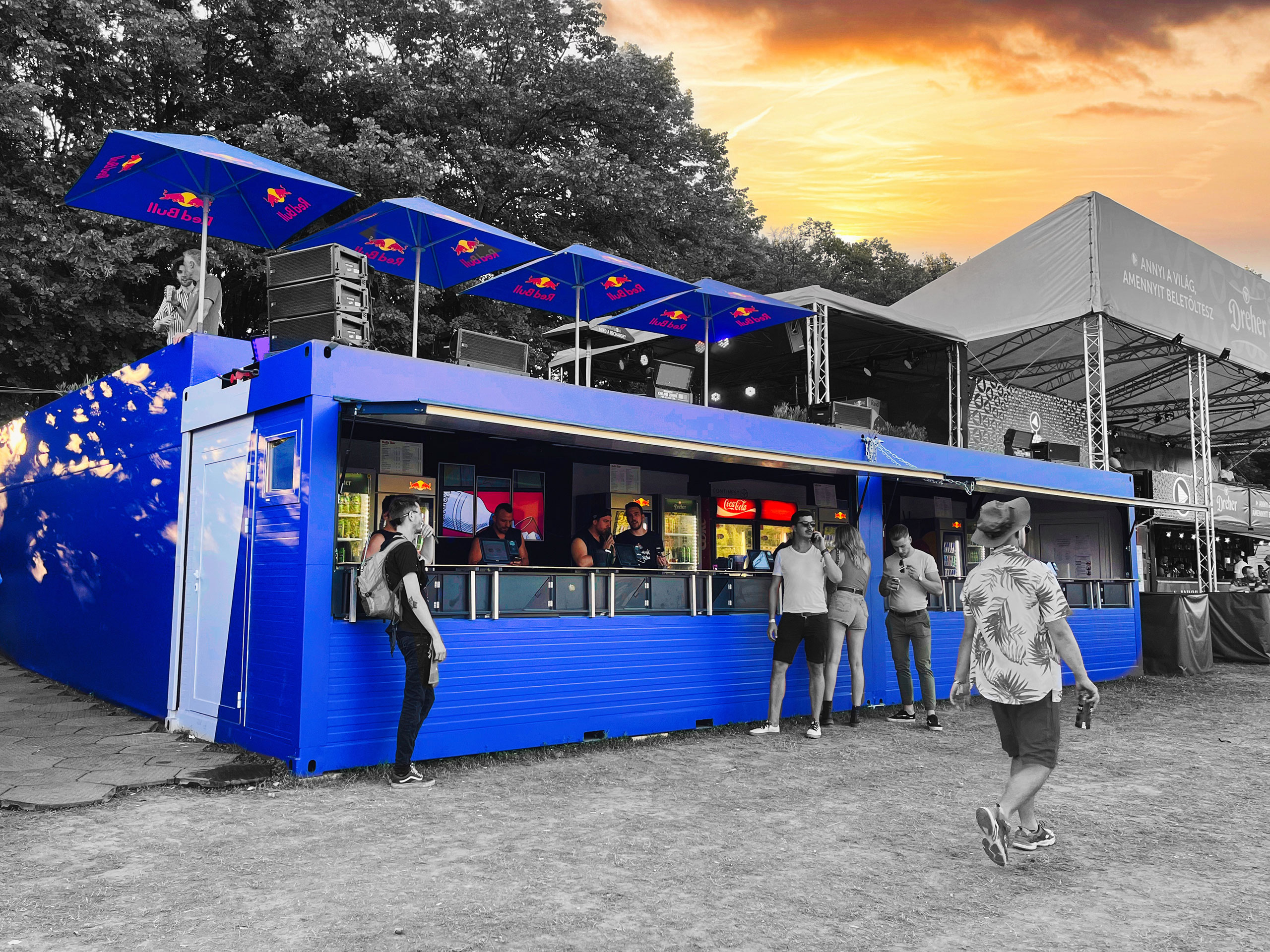

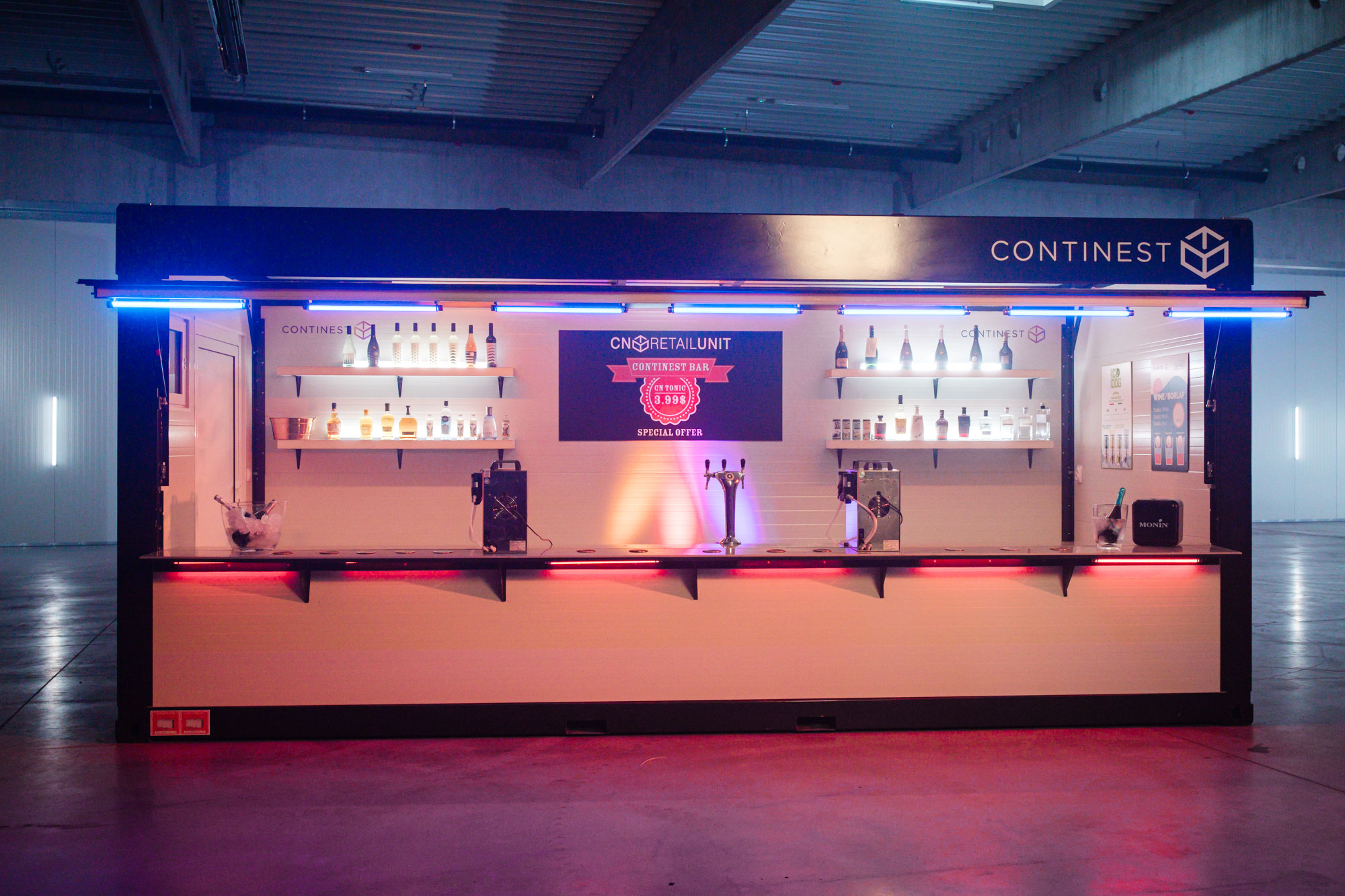

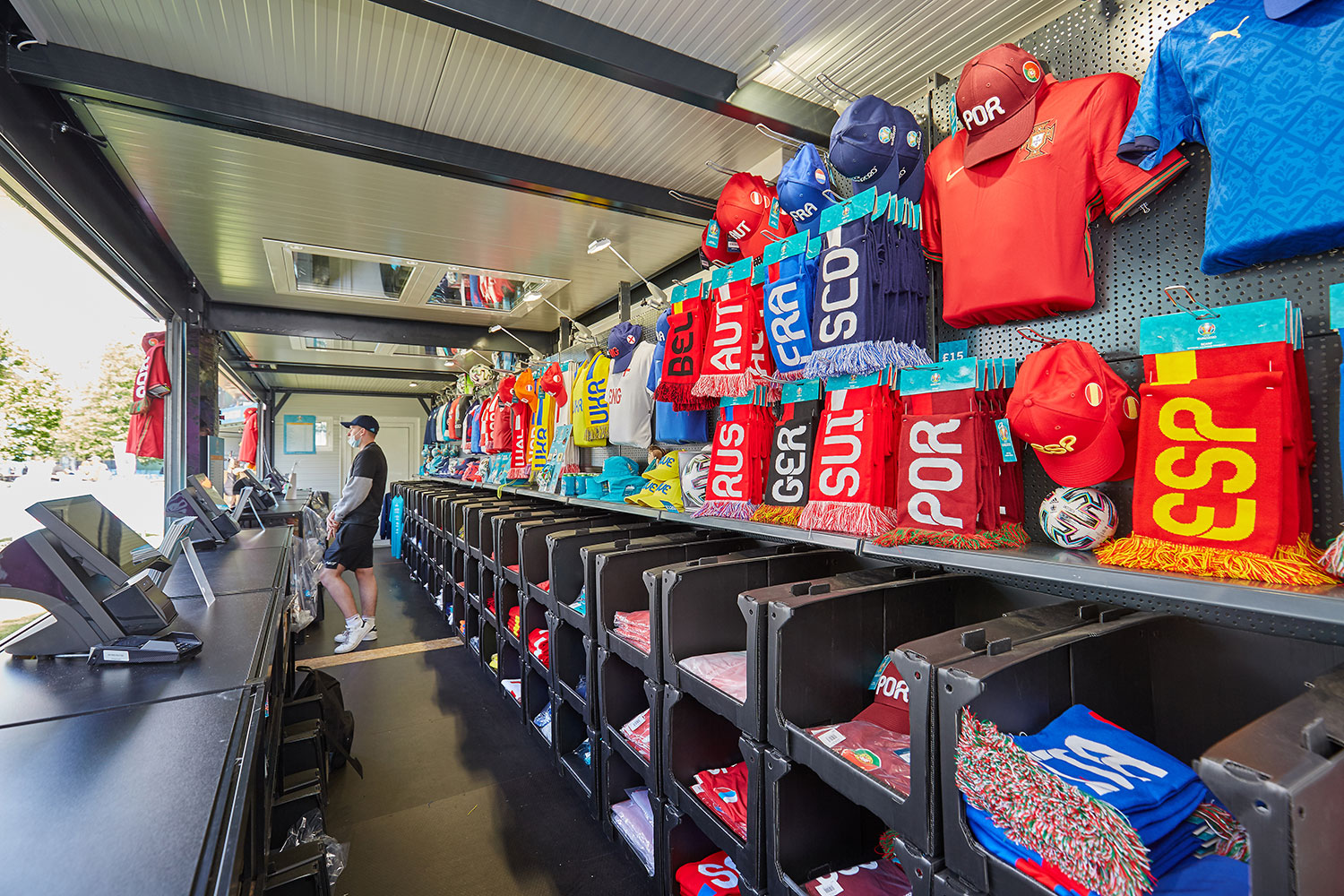

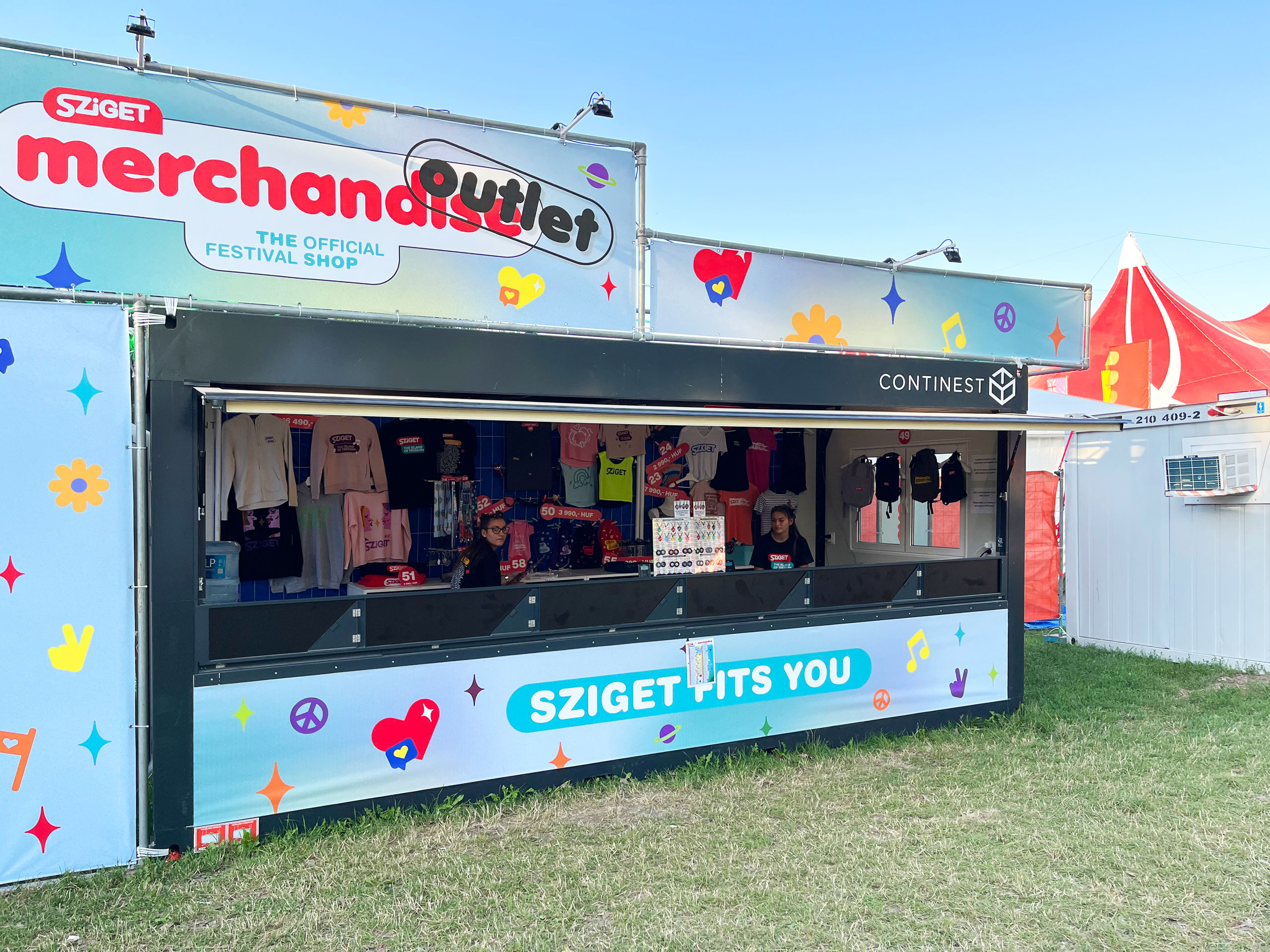

The CN Retail Unit is an easily deployable, foldable container designed for fast, practical, and comfortable on-site vending. The CN Retail Unit provides a 20 ft long pop-up unit for merchandise, retail, F&B, ticket sales, box office etc.
As with all CN products, it reduces the environmental impact of transportation and construction time; thus, transforming event logistics as we know it.
STACKABLE
10 units can be loaded
and stacked on a standard trailer
Trademark No. 227509, Patent Registration No. WO 2019/064036
CN RETAIL

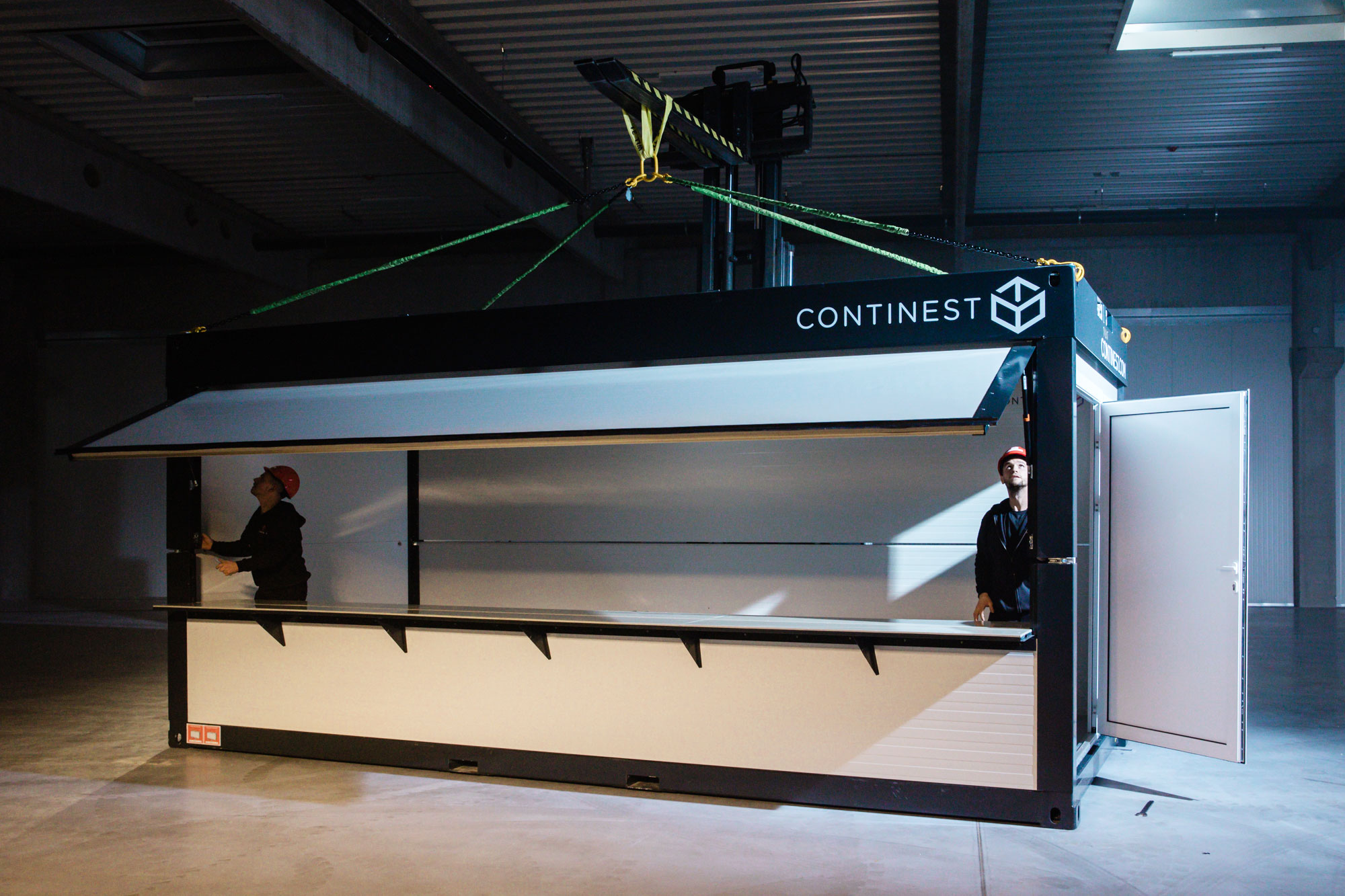

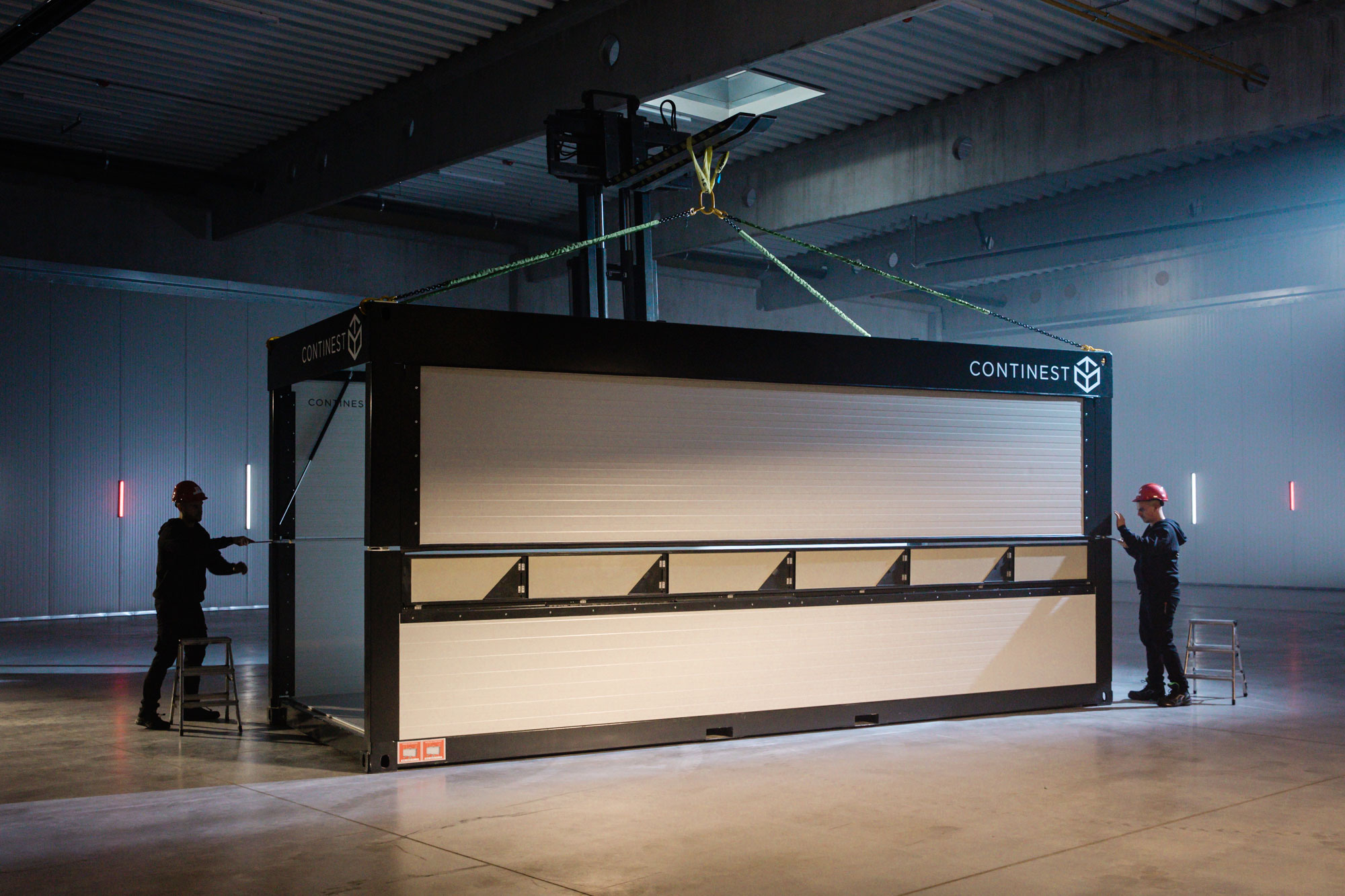

Fast deployment
20 ft LONG POP-UP UNIT
CN Retail dimensions
Imperial
Metric
| DIMENSIONS | WIDTH | HEIGHT | LENGTH |
|---|---|---|---|
| EXTERIOR | 8' 0" | 9' 1" | 19' 10.5" |
| Interior | 7' 7" | 8' 2.7" | 19' 1" |
| FOLDED | 8' 0" | 1' 9.9" | 19' 10.5" |
| DOOR | 3' 9" | 6' 9.5" | |
| AC WINDOW | 2' 0" | 1' 8.5" |
WEIGHT | 4,074 lb |
|---|---|
| DIMENSIONS | WIDTH | HEIGHT | LENGTH |
|---|---|---|---|
| EXTERIOR | 2440 mm | 2777 mm | 6058 mm |
| Interior | 2314 mm | 2507 mm | 5820 mm |
| FOLDED | 2440 mm | 555 mm | 6058 mm |
| DOOR | 1145 mm | 2070 mm | |
| AC WINDOW | 620 mm | 520 mm |
WEIGHT | 1848 kg |
|---|---|
*Can be upgraded upon request.
CN RETAIL
Logistical advantages
CN RETAIL
Operational advantages
